15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation

Name: 156oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation
Brand: Unionfull
Price: 2.5 USD

Buy cheap 15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation product

Brand Name : Unionfull

Model Number : UPSE-8732D50

Certification : ISO9001:2008, SGS;TUV

Place of Origin : China

MOQ : 500 Meters

Price : $2.5-3.5/ M2

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50,000 m2 per day

Delivery Time : 20 working days after receiving payment

Packaging Details : 50 meters one roll

Basic Cloth : 430gsm

Coating : Blue Silicone

Weight : 530g/m2

Width : 1.55M

Temperature : Below 260℃

Roll Length : 50M

Contact Now

15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation

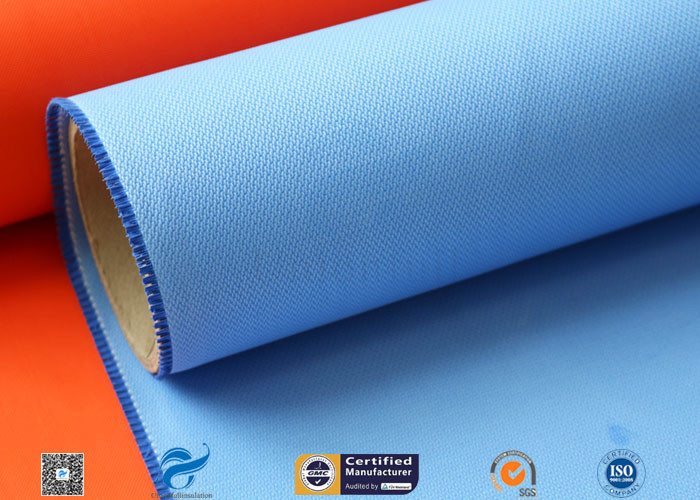

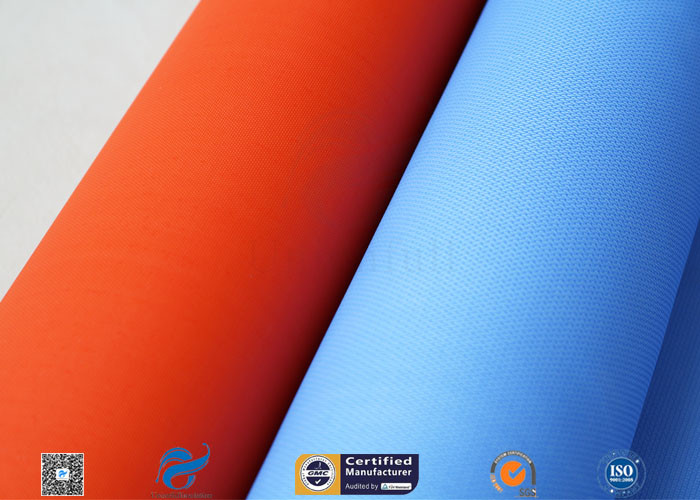

Blue silicone coated fiberglass fabric is coating basic fiberglass cloth in satin(cross twill/break twill) weaving with 50g/m2 silicone on both two sides. It is coated with blue color silicone and the total weight is 530g/m2. Fiberglass cloth can withstand heat below 550℃. And the blue silicone can only be used below 260℃.

Fiberglass cloth is high strength, durable and fire resistant. Silicone coating improve its abrasion resistance, chemical resis and electrical insulation. Based on the features of fiberglass fabric and silicone, the blue silicone coated fabric is used for thermal insulation/electrical insulation blanket, fire curtain, welding blanket and flexible expansion joints.

Specification

Item	Silicone Coated Fiberglass Fabric
Material	Fiberglass Cloth
Weaving	Satin Weave
End(per cm)	20/11
Weight per m2	530g/m2
Thickness	0.5mm
Width	155cm
Temperature	Silicone Coating below 260℃

Feature:

Heat/fire resistant
Electrical insulation
High tensile strength
Chemical acid resistant
Abrasion resistant

Detail Pictures

15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation
