Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric

Name: Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric
Brand: Unionfull
Price: 2.6 USD

Buy cheap Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric product

Brand Name : Unionfull

Model Number : UPSE-8628D50

Certification : ISO9001:2008, SGS;TUV

Place of Origin : China

MOQ : 500 Meters

Price : $2.6-3.50/ Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000 square meters per day

Delivery Time : 20 Working Days After Receiving Payment

Packaging Details : 50 meters per roll with poly bag

Materials : 200g Fiberglass Fabric

Coating : Silicone, 50/50

Weave : Satin(break twill)

Weight : 300g/m2

Common Width : 100cm

Feature : Abrasion resistance, electrical insulation

Contact Now

0.3mm Grey Silicone Coated Fiberglass Fabric For Engine Thermal Insulation

This 0.3mm silicone coated fiberglass fabric is made of 200gsm 0.2mm woven fiber glass cloth coated with grey silicone on two sides. Fiberglass fabric is a tear resistant but light weight fabric compared with other materials for industrical heat insulation. Coating of this fiberglass fabric is 50g/m2 per side. The basic fiberglass cloth is able to withstand 550℃. And the working temperature of silicone coating is below 260℃.

Silicone fiber glass cloth is a heat resistant, durable and electrical insulation material. Based on its special features of fiberglass cloth and silicone coating, silicone coated fiberglass cloth is always used for welding/fire blanket, fabric expansion joints, removable thermal insualtion jackets for generator and valve, chemical corrosion resistant cover for pipeline.

Specification Of UPSE-8628D50

Item	Silicone Coated Fiberglass Fabric
Material	Fiber Glass
Weave	Plain Weave
Warp Density	17.3 Ends/CM
Weft Density	13 Ends/CM
Mass Per Unit	300gsm
Thickness	0.3mm
Width	100cm
Working Temperature	Silicone Coating below 260℃

Properties:

Fireproof
Durable, abrasion resistant
Anti acid, alkali, corrosion resistance
Electric insulation
Below 260 degree C working temperature

Application:

Removable thermal insulation jacket
Fire safety doors, fire curtains
Fabric expansion connector
Electrical insulation exhaust blanket
Enginer thermal insulation

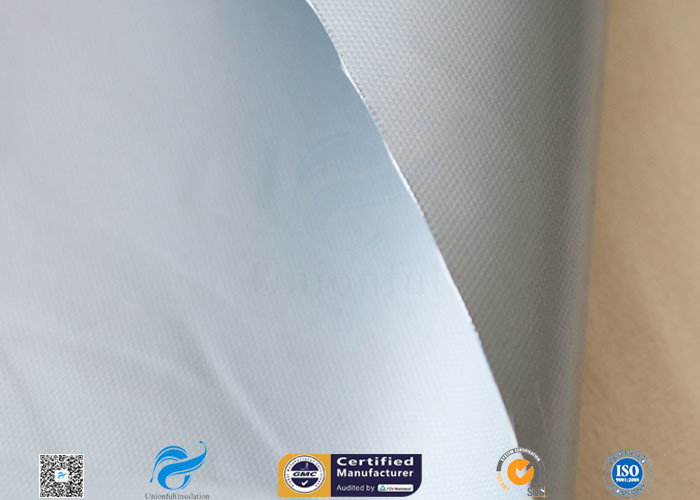

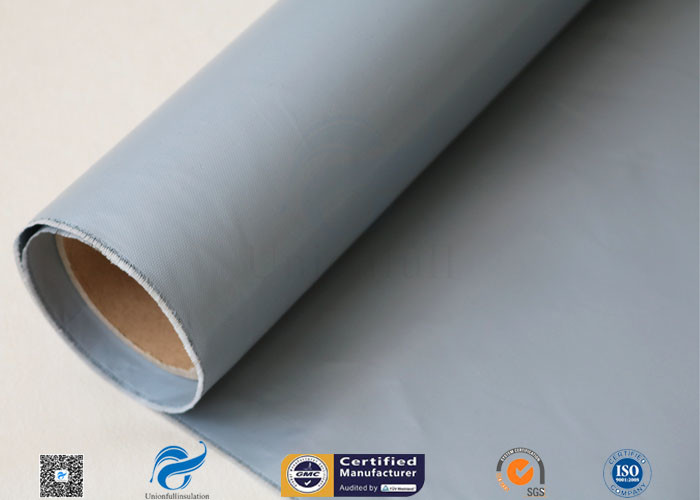

Picture:

Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric
