0.45mm 470gsm Fiberglass Fabric Fireproof Insulation Material With Silicone Coated

Brand Name : Unionfull

Model Number : UPSE-8732S40

Certification : ISO9001:2008, SGS;TUV

Place of Origin : China

MOQ : 500 Meters

Price : $2.5-3.5/ Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000 square meters per day

Delivery Time : 15 Working Days After Receiving Payment

Packaging Details : 50 meters per roll with poly bag

Base Cloth : 3732 Fiberglass Fabric

Coating : Red Silicone, 40gsm on one side

Total Thickness : 0.45mm

Weight : 430g/m2+40g/m2coating)

Width : 100cm

Feature : Thermal Insulation, Electric Insulation

Weave : Satin Weave

Keyword : silicone coated fiber glass fabric

Contact Now

0.45mm 470gsm Fire Resistant Red Silicone Coated Fiberglass Fabric



This 0.45mm silicone coated fiberglass cloth is made from fiberglass fabric which has coated with 40g/m2 red silicone/rubber on one side. The fiberglass fabric can resist a high temperature below 550℃. And the rubber/silicone coating is able to withstand 260 degree Celsius.

Silicone coated fiberglass fabric is a flexible, durable and fire resistant fabric. It is made from fireproof e-glass fiber glass woven fabric, with advantages such as structure stability, tear resistance and high strength. And because of the silicone coating, this silicone coated fiberglass cloth are widely used to produce industrial protection items such as fire blankets, expansion jointss, pump/pipeline/valve thermal insulation jacket and fire protective products.

Yarn type of this silicone coated  fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight of this 3732 fiberglass fabric is 470g/m2, 430g/m2 fabric and 40g/m2 red silicone coating on one side. Common widths are 100cm, 127cm, 155cm.


Technical Data Of 3732 Fiberglass Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

 0.4mm 430g/m2 1.55m




Specification Of UPSE-8732S40:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Coating Red Silicone, One side
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 470g/m2(430+40)
Thickness 0.45mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:


  • Anti chemical agent
  • Corrosion resistance
  • Durable, abrasion resistance
  • Tear resistance, high strength.
  • Electric insulation
  • Service temperature from -50 degree to 260 degree Celsius.


Application:


  1. Cold protection covers
  2. Fire doors & fire curtains
  3. Cable cover, pump thermal insulation jackets
  4. Fire safety clothing, protective products
  5. Anti-corrosion sector
  6. Expansion joint
  7. Hot air blower

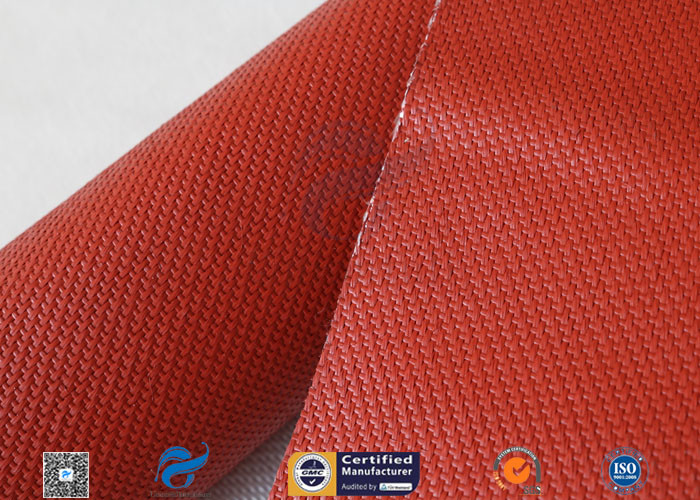

Picture:



0.45mm 470gsm Fiberglass Fabric Fireproof Insulation Material With Silicone Coated0.45mm 470gsm Fiberglass Fabric Fireproof Insulation Material With Silicone Coated
