Black PTFE Coated Fiberglass Fabric 0.12mm 50" Non Stick Food Grade

Black PTFE Coated Fiberglass Fabric 0.12mm 50" Non Stick Food Grade

Fiberglass fabric is a high strength woven fabric in plain or others weave. It is heat resistant and flame resistant. In order to meet different applications, it usually be impregnated with different coatings like silicon, PU, PVC and PTFE. Among them, PTFE (polytetrafluoroethylene), also called PTFE compound, is a high temperature coated cloth with food grade and non stick coating surface. This PTFE fabric treatment is with properties like high temp insulation, chemical agents resistance, corrosion resistance and low friction coefficient. This non stick material can be used in many fields.

The basic fibre fabric cloth is able to be used from -50 to 550℃. And PTFE coating can resist a temperature from -50 to 260℃ continuously. What's more, fiber glass cloth is an eco-friendly and recyclable material which is without pollution .

This 0.12mm PTFE coated glass fabric is made of plain weave fiberglass fabric which final weight with coating is 230g/m2. With coating PTFE, this fabric is easy to clean by soapy water. And its final products can be washed by dishwasher. Very convenient!

For food process, this ptfe impregnated fiberglass cloth is a great material for microwave liner and BBQ grill mat and oven insulation material. Food grade PTFE coating is FDA approved which is totally non toxic and odorless during continuous heating. Common thicknesses of baking mat are 0.08mm, 0.12mm and 0.2mm. Size and packaging can be customized. This reusable BBQ grill mat will be your perfect choice if you enjoy using your grill for barbecue. A grill liner makes your grilling easy and no mess. It prevents food from falling through the grill and cracks. It also allows you to remove the meet and vegetable easily without sticking. You can use it for chicken, eggs, veggies, steaks, and cheese grilling.

Except for baking, grilling, another application of PTFE fiber glass cloth is industrial usages includes non stick purpose, heat insulation, heat press transfer machine, printing dyeing factory, pipe insulation material. For heat printing non stick cover liner, its size is usually 8x12 inches and 10x12 inches, 18x20 inches. This cover liner is an important heat printing accessory and will protect the design from the heated upper platen. Once heat is necessary to activate the adhesive for the garment, we don’t want any residue to melt onto the machine upper platen.

Specification:

Properties

1. Heat insulation
2. Fire resistant
3. Non stick during heating
4. Food grade, FDA approved
5. Anti chemical agents
6. Almost no thermal shrinkage
7. Abrasion resistant, durable
8. Eco friendly, no pollution
9. Non toxic, tasteless

Application

• BBQ grill mat
• Food baking liner
• Stovetop burner protector
• Fusing belts, heat sealing materials
• Hot press machine transfer
• Electrical insulation material
• Chemical factory usages

Pictures:

coefficient(s) of friction
For industrial usages, this coated fiber glass fabric is mainly for non stick and heat insulation, like heat press transfer machine, dyeing factory, pipe insulation material.

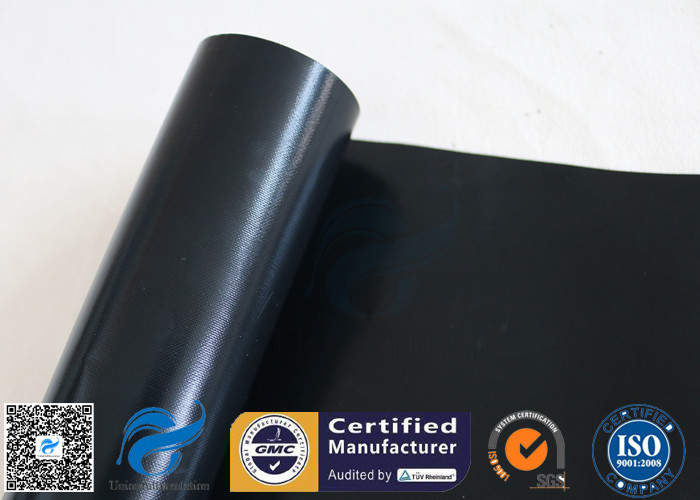

ptfe coated glass fibre fabric

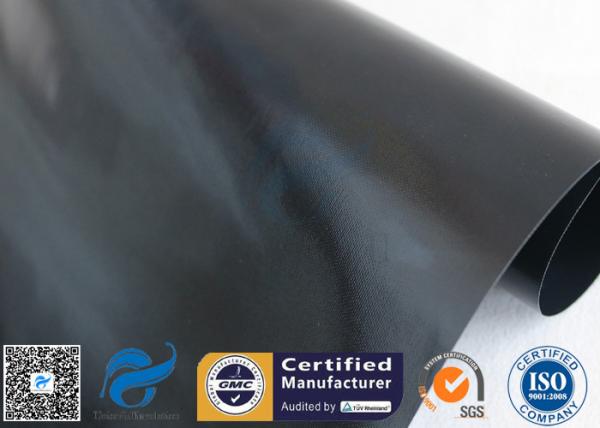

ptfe coated fiberglass cloth
