Removable Heat Insulation Gate Valve Covers with Long Lifetime
Product Introduce
Heat Insulation Gate Valve Cover has three to six layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aerogel blanket, and the protection layer is silicone coated glass fiber cloth, cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150mm, which could be customized, temperature resistance could be as high as 1200℃. Normal lifetime is more than 5 years. And the energy saving rate is 20% to 60%.
Data
| Products Index |
| Material | Fiberglass Fabric |
| Temperature Range | -70℃-1200℃ |
| Moisture absorption rate | <5% |
| Thermal Conductivity | 0.025 W/M•K- 0.045 W/M•K±0.005 (Normal temperature) |
| Chemical performance | Prevent moth and anti-mildew |
| chemical corrosion resistance |
| Density | 110-220Kg/m3 |
| Thickness | 10-200mm |
| Energy saving | 20%-60% |
| Surface temperature | lowered to 40℃ |
| Normal lifetime | ≥5years |
Advantages
1. Good insulation effect, reduce energy consumption and improve the on-site working temperature environment
2. fire retardant, resistance to high temperature, the raw material resistant to high temperature of 550 ℃ to 1200 ℃.
3. The inner layer has good insulation and does not conduct electricity, so it is not necessary to change the circuit line of the machine during installation.
4. Acid and alkali resistance, insect bite control, mildew resistance, long service life and low maintenance cost.
Application
1. Barrel heater on injection molding machine, extruder etc.
2. Molds and dies
3. Flange, Pipe, Valve
4. Exhaust Elbow
5. Heater exchanger
6. Exhaust pipe of engine
7. Any other applications needed to reduce heat loss

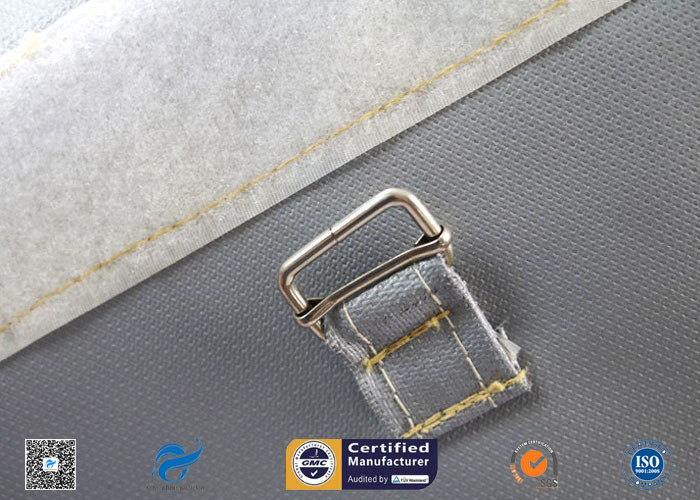

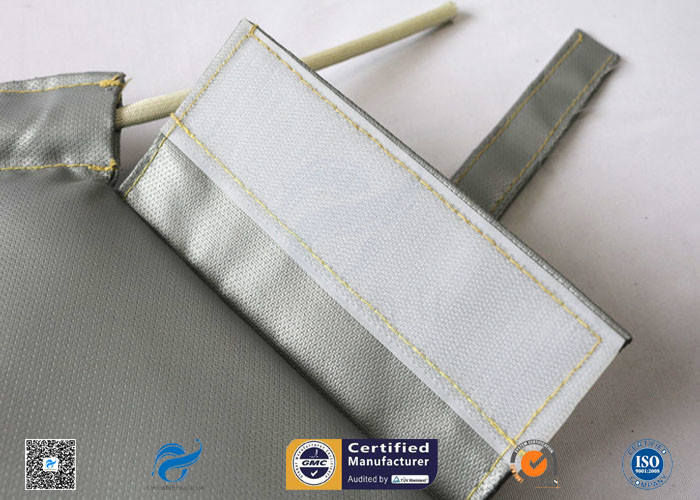

Pictures
