Thermal Insulation Aluminium Foil Singled Side Woven Fiberglass Fabric
Aluminum foil insulation provides neat appearance, reflects up to 97% radiant heat from the heat source. Unionfull's reflective aluminum foil insulation are mainly used under roof decking, over existing attic insulation, under attic rafters, in floors, walls and crawl spaces, and in industrial and commercial buildings as radiant barrier to block radiant heat coming into house through the roof and wall during the summer and retain indoor heat generated during the winter. Also used as a water vapor barrier in air conditioning duct-works and cold rooms.
Item No.:UPEAL-8732
Material: alumimun foil+430g/sqm fibreglass cloth
width:1m/1.2m/1.5m
length: 50/100m per roll or as your requirement
Properties:
1. Low moisture vapor transmission rate
2. Eco-friendly Environment friendly
3. Good Reflective on heat and light
4. Excellent sealing function
Main Sepecification:
| Item | Area Weight
(g/m2) | Thickness | Temperature℃ | Weaving | Tensile Strength |
| PCAL-8628 | 200 | 0.2mm | 300-550 | Plain | 2025/1620 |
| UPEAL-8732 | 430 | 0.43mm | 300-550 | Satin | 6000/4500 |
| UPEAL-8784 | 880 | 0.85mm | 300-550 | Satin | 8000/6000 |
Data sheet:
| Item | UPEAL-8732 |
| Thread count | Warp | 19.6±0.5 per cm |
| Weft | 15±0.5 per cm |
| Yarn Warp/Weft | ECG 37 1/0 |
| Weight | 510g/m2 |
| Thickness | 0.43mm |
| Color | Sliver |
| Coating | Aluminium Foil one side |
| Temperature | Fiberglass fabric ≤ 550℃ Aluminium Foil Laminate ≤ 300℃ |
Application:
- Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
- Used as the thermal insulation material on Roof,wall,floor,tank,vessel,air conditioner,tank,heat supply pipes or construction materials for the purpose of fire-retarding, anti-corrosion, heat protection and sound aborption.
- Used as Packing chemical equipments such as oil and steam transportation pipeline and the steam pipelines in the petrochemical industry.
- Heat sealing aluminum foil facing also used as a water vapor barrier in air condition ductworks and Hot & cold room.

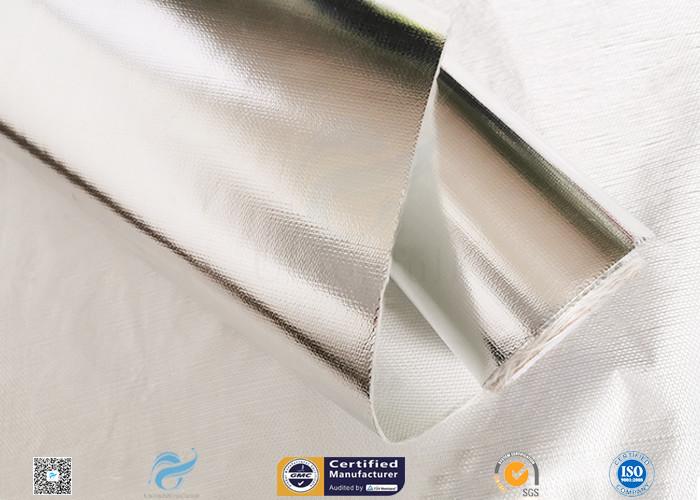

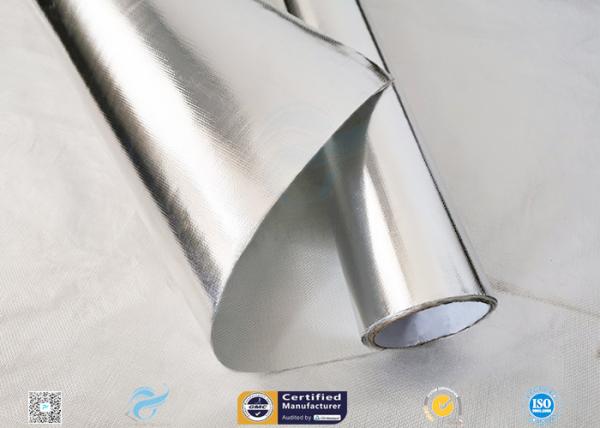

Pictures:
